- Country
- United States of America (USA)
- Manufacturer / Brand
- Magnavox Co., Commercial Wireless and Development Co.; San Francisco, later Fort Waye, IN
- Year
- 1956 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 211878

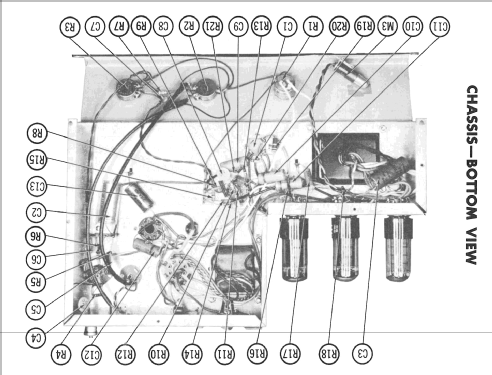

Picture is from SAMS Photofact.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 2
- Number of Transistors
- Semiconductors
- 1N34A
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Powered by external power supply or a main unit.
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case, TUBES VISIBLE
- from Radiomuseum.org
- Model: Ch= CR-740AA - Magnavox Co., Commercial
- Shape
- Chassis only or for «building in»
- Notes
-
Magnavox Chassis CR-740AA is a externally powered AM tuner.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 375 Folder 13 dated 10-57)
- Author
- Model page created by Oscar Herrera. See "Data change" for further contributors.
