- Country
- United States of America (USA)
- Manufacturer / Brand
- Magnavox Co., Commercial Wireless and Development Co.; San Francisco, later Fort Waye, IN
- Year
- 1949
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 222108
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 23
- Valves / Tubes
- 6BH6 6AG5 6C4 6AG5 6AG5 6AG5 6AG5 6SN7 6AL5 6BA6 6BA6 6AU5 6AL5 6AT6 6K6 6SN7 6SN7 6BG6 5V4 1B3 5U4 10BP4
- Main principle
- Superheterodyne (common)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 105-125 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: CT-218 - Magnavox Co., Commercial
- Shape
- Tablemodel, with any shape - general.
- Notes
- Channel 2 -13 59,75MC - 215,75MC.
- Mentioned in

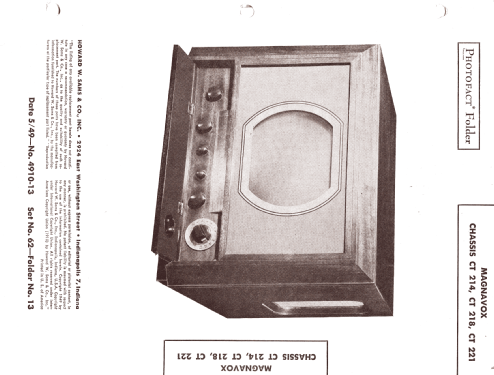

- Photofact Folder, Howard W. SAMS (Volume 7 Set #62 Folder 4910-13 05/49)
- Author
- Model page created by Arpad Roth † 27.3.17. See "Data change" for further contributors.
