CT-222 A

• Country
• United States of America (USA)

• Manufacturer / Brand
• Magnavox Co., Commercial Wireless and Development Co.; San Francisco, later Fort Waye, IN

• Year
• 1950 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 243194

• Picture

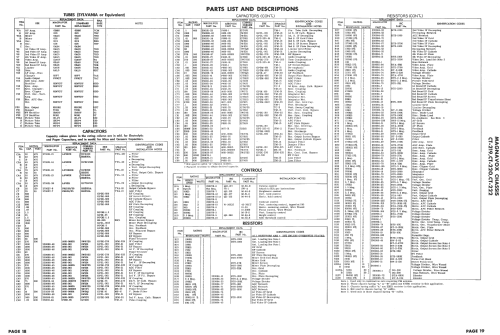

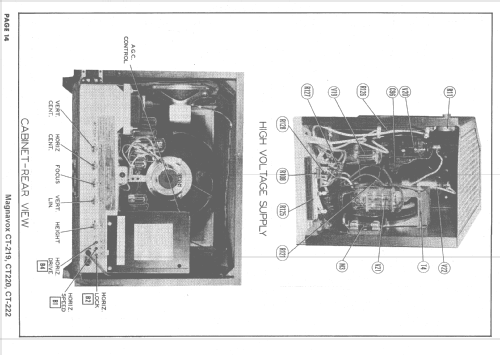

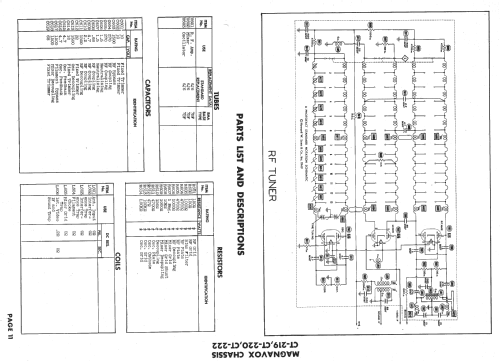

• Schematics

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 24

• Valves / Tubes
• 6BH6 6AG5 6C4 6AG5 6AG5 6AG5 6AG5 12AU7 6BA6 6BA6 6AU6 6AL5 6SF7 6V6GT 6SN7GT 6SN7GT 6SN7GT 6SN7GT 6SN7GT 6BG6G 5V4G 1B3GT 5U4G 12LP4

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 110-120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7.25 inch = 18.4 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: CT-222 [A] - Magnavox Co., Commercial

• Shape
• Tablemodel, low profile (big size).

• Notes

• TV-Receiver 12" Picture Tube

  Channels 2 thru 13

  Tube V1 alternative 6J6, V2 alternative 6J6 , V3 alternative 6J6 or 6AB4
  RF Tuner V601, V602 , V603 3 times 6J6

• Mentioned in
• Photofact Folder, Howard W. SAMS (Date 1-50, Set 82 Folder 7)

• Author
• Model page created by Friedrich Weber † 12.09.2014. See "Data change" for further contributors.
