• Country
• United States of America (USA)

• Manufacturer / Brand
• Magnavox Co., Commercial Wireless and Development Co.; San Francisco, later Fort Waye, IN

• Year
• 1965

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 162707

• Number of Transistors
• 9

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Dry Batteries / 1 x 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.5 inch = 6.4 cm

• Power out
• 0.2 W (unknown quality)

• Material
• Various materials

• from Radiomuseum.org

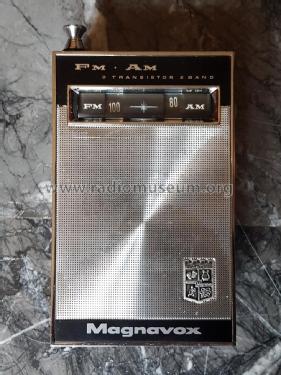

• Model: FM-AM 9 Transistor 2 Band FM-92 - Magnavox Co., Commercial

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 75 x 120 x 36 mm / 3 x 4.7 x 1.4 inch

• Net weight (2.2 lb = 1 kg)
• 0.4 kg / 0 lb 14.1 oz (0.881 lb)

• Mentioned in
• Photofact TSM Transistor Radio Series SAMS (TSM-59)

• Literature/Schematics (1)
• Collector's Guide To TrR1 Bunis trans.94 (1996. page 152)

• Author
• Model page created by Fabio Zannier. See "Data change" for further contributors.
