• Year
  • 1925
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 46444

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • TRF without regeneration; 2 AF stage(s)
  • Tuned circuits
  • 3 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Storage and/or dry batteries
  • Loudspeaker
  • - This model requires external speaker(s).
  • Material
  • Wooden case
  • from Radiomuseum.org

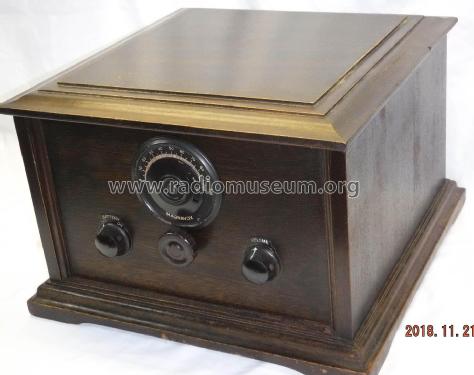

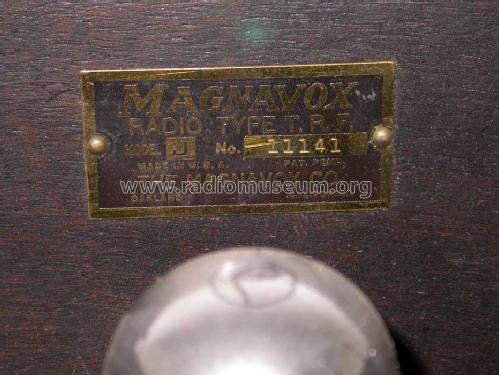

  • Model: Junior Single Dial J - Magnavox Co., Commercial
  • Shape
  • Tablemodel, Box - most often with Lid (NOT slant panel).
  • Dimensions (WHD)
  • 15.5 x 10 x 15.5 inch / 394 x 254 x 394 mm
  • Notes
  • One dial (primary tuning control knob)
  • Net weight (2.2 lb = 1 kg)
  • 21.6 lb (21 lb 9.6 oz) / 9.806 kg
  • Price in first year of sale
  • 85.00 $
  • External source of data
  • Ernst Erb
