• Country
• Great Britain (UK)

• Manufacturer / Brand
• Magnavox (Great Britain), Magnavox Electronics; London

• Year
• 1963 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 169169

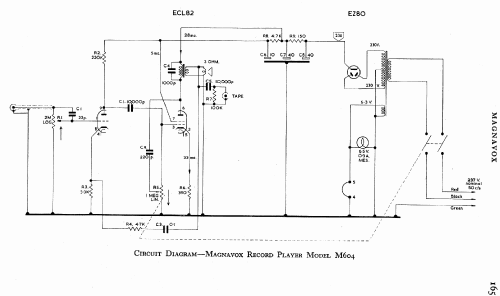

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 2

• Valves / Tubes
• ECL82 EZ80

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage
• Alternating Current supply (AC) / 200-250 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org
• Model: M604 - Magnavox Great Britain,

• Notes
• Transportable record reproducer with auto-changer unit. Output socket for tape recorder.

• Source of data
• -- Schematic

• Literature/Schematics (1)
• Radio And Television Servicing books (R&TVS)

• Author
• Model page created by Keith Staines. See "Data change" for further contributors.
