• Country
• United States of America (USA)

• Manufacturer / Brand
• Philips Magnavox (brand); Knoxville, TN

• Year
• 1987

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 296009

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 8

• Semiconductors
• 2SC1047 2SA838 2SC1359 TBC548 TBC548 TBC548 TBC548 TBC548 TEA5570 U420B

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 120 / 6 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

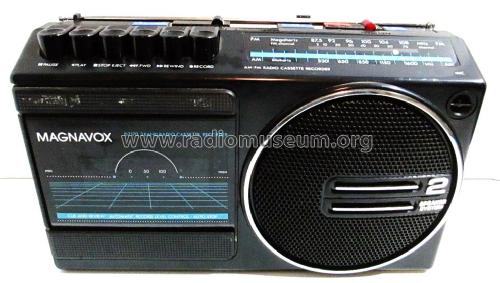

• Model: Radio Cassette Recorder D7170 /17 - Philips Magnavox brand;

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 290 x 170 x 80 mm / 11.4 x 6.7 x 3.1 inch

• Notes

• Similar to Philips D7170.

  Made in Malaysia.

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Wolfgang Bauer. See "Data change" for further contributors.
