• Country
• United States of America (USA)

• Manufacturer / Brand
• Magnavox Co., Commercial Wireless and Development Co.; San Francisco, later Fort Waye, IN

• Year
• 1970 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 306130

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Dry Batteries / 1 x 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 0.25 W (max.)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

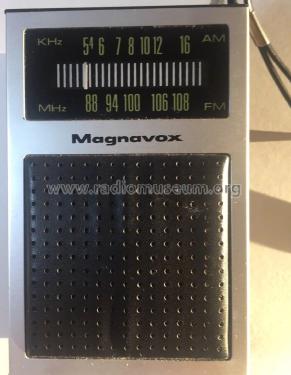

• Model: Transistor Radio RD3031 - Magnavox Co., Commercial

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 3.125 x 4.5 x 1.5 inch / 79 x 114 x 38 mm

• Notes

• Made in Singapore

• Literature/Schematics (1)
• Photofact TSM Transistor Radio Series SAMS (TSM-159)

• Author
• Model page created by Aldo Andreani. See "Data change" for further contributors.
