- Country
- United States of America (USA)
- Manufacturer / Brand
- Magnavox Co., Commercial Wireless and Development Co.; San Francisco, later Fort Waye, IN
- Year
- 1957 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 311382

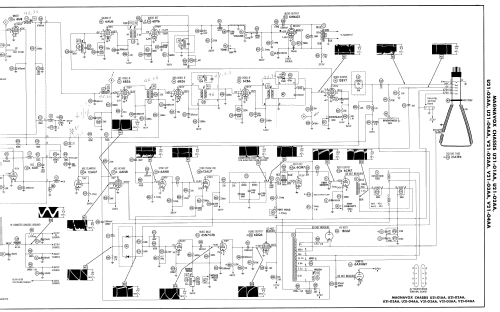

Picture from service manual.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 19
- Valves / Tubes
- 6BC8 6U8 6AF4A 6BZ6 6BZ6 6CB6 12BY7 6AN8 12AU7 6AU4 6DT6 6W6GT 6CM7 6SN7GTB 6DQ6 or 6CU6 6AX4GT 1B3GT 5U4GB 21ATP4
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Metal case
- from Radiomuseum.org
- Model: Ch= U21-06BB - Magnavox Co., Commercial
- Shape
- Chassis only or for «building in»
- Notes
-
Magnavox Chassis U21-06BB 21 Series is an 21" b/w TV with US FCC standard VHF tuner with channels 2 thru 13, 14 thru 83 UHF, VHF-Tuner 700541-3, UHF-Tuner 700530-2 and picture tube 21ATP4.
- Mentioned in

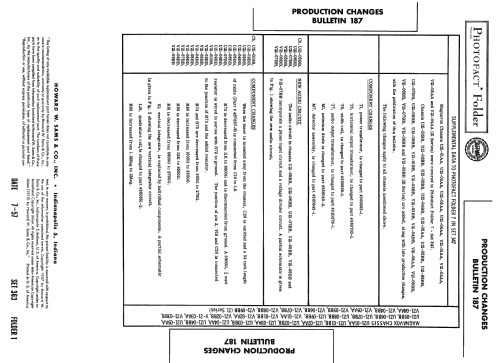

- Photofact Folder, Howard W. SAMS (Set 363 Folder 1 Production Changes Bulletin 187 Dated 57-7)
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 347 Folder 7 Dated 2-57)
- Literature/Schematics (2)
- Photofact Folder, Howard W. SAMS (Set 339 Folder 18-S Dated 1956)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
