• Country
• United States of America (USA)

• Manufacturer / Brand
• Magnavox Co., Commercial Wireless and Development Co.; San Francisco, later Fort Waye, IN

• Year
• 1957 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 313609

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 17

• Valves / Tubes
• 2AF4A 4BQ7A 5U8 3BZ6 3BZ6 3CB6 12BY7A 5U8 3DT6 12L6GT 6CG7 6CM7 6CG7 12DQ6 12AX4GTA 1B3GT 21ATP4A

• Main principle
• Superhet with RF-stage

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

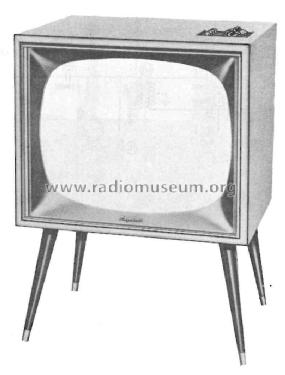

• Model: Ch= U73-02AA - Magnavox Co., Commercial

• Shape
• Console, Highboy (legs > 50 %).

• Notes

• Magnavox chassis U73-02AA is a 21" b/w TV with US standard VHF tuner channels 2 thru 13, and 14 thru 83 UHF. Equipped with VHF-tuner 700558-2, UHF tuner 700556-2 and picture tube 21ATP4A.

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 369 Folder 12 dated 9-57)

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
