- Country
- United States of America (USA)
- Manufacturer / Brand
- Magnavox Co., Commercial Wireless and Development Co.; San Francisco, later Fort Waye, IN
- Year
- 1956 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 261861

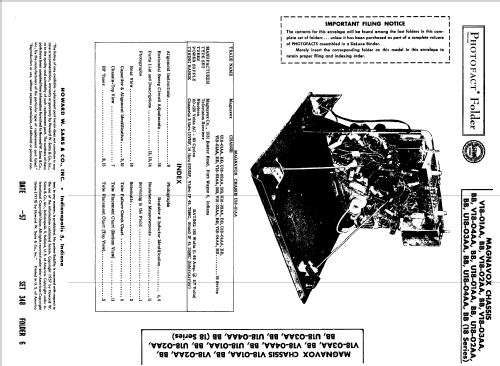

Picture from service manual.

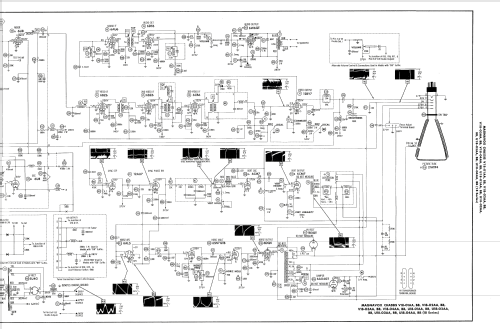

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 19
- Valves / Tubes
- 6AF4A 6BC8 6U8 6BZ6 6BZ6 6CB6 12BY7 6AU6 6DT6 6W6GT or 6DG6GT 12AU7 6CM7 6AL5 6SN7GTB 6DQ6 or 6CU6 6AX4GT 1B3GT 5U4G or 5U4GA 21ATP4 or 17AVP4
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 60 cycles, 110-120 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Metal case
- from Radiomuseum.org
- Model: CH= V1802BB 18 Series - Magnavox Co., Commercial
- Shape
- Chassis only or for «building in»
- Notes
-
The Magnavox chassis V1802BB 18 Series is a b/w TV with US standard VHF Tuner channels 2 thru 13, 14 thru 83 UHF. This chassis is equipped with a picture tube 21ATP4 or 17AVP4.
