Ch= V19-02AA 19 Series
Magnavox Co., Commercial Wireless and Development Co.; San Francisco, later Fort Waye, IN
- Country
- United States of America (USA)
- Manufacturer / Brand
- Magnavox Co., Commercial Wireless and Development Co.; San Francisco, later Fort Waye, IN
- Year
- 1956 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 283287

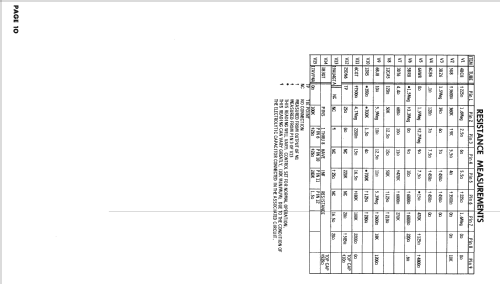

Picture from service manual.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 15
- Valves / Tubes
- 4BC8 5U8 3BZ6 3CB6 6AW8 5BR8 3DT6 12CA5 6BJ8 6CG7 25DN6 12R5 19AU4 1B3 14SP4 or 14RP4A or 17AVP4A
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Ch= V19-02AA 19 Series - Magnavox Co., Commercial
- Shape
- Tablemodel, with any shape - general.
- Notes
-
The Magnavox chassis V19-02AA 19 Series is a b/w TV with US standard VHF Tuner channels 2 thru 13. This chassis is equipped with VHF-tuner 700555 and picture tube 14SP4, 14RP4A or 17AVP4A.Speaker 4"x6".
- Mentioned in
- Photofact Folder, Howard W. SAMS (Set 338 Folder 13-S dated 1956)
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 364 Folder 13 dated 7-57)
- Literature/Schematics (2)
- Photofact Folder, Howard W. SAMS (Set 371 Folder 8 dated 9-57)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
