- Country
- United States of America (USA)
- Manufacturer / Brand
- Magnavox Co., Commercial Wireless and Development Co.; San Francisco, later Fort Waye, IN
- Year
- 1962 ?
- Category
- Citizen Band Equipment
- Radiomuseum.org ID
- 146493

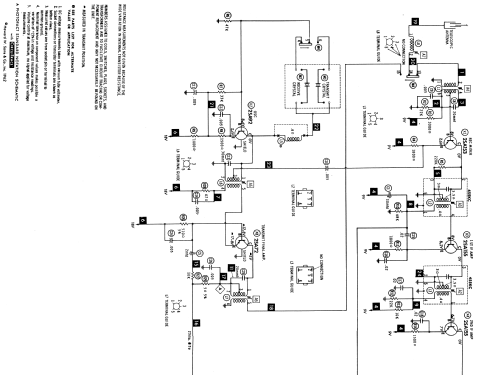

CB-Photofact Vol.3 Seite 113
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 8
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Short Wave (SW only)
- Power type and voltage
- Storage and/or dry batteries / 18 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.5 inch = 6.4 cm
- Material
- Bakelite or Plastics (type unknown)
- from Radiomuseum.org
- Model: WT101 - Magnavox Co., Commercial
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Notes
- Any one of Citizens Band Channels 1 thru 23.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (CB Vol.3, Folder 113)
- Author
- Model page created by Heribert Jung. See "Data change" for further contributors.
