- Country
- Great Britain (UK)
- Manufacturer / Brand
- Magneta Time Co. Ltd., Leatherhead
- Year
- 1946 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 162524
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC)
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Metal case
- from Radiomuseum.org
- Model: unknown - Magneta Time Co. Ltd.,
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 540 x 300 x 270 mm / 21.3 x 11.8 x 10.6 inch
- Notes

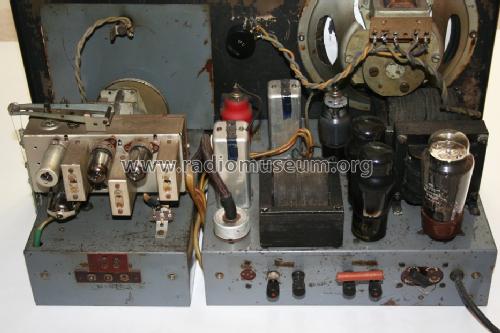

- Combination of a two-band radio and a push-pull power amplifier. Separate af inputs for microphone and gramophone. Two volume controls for mixing mic and music.
Coverage SW: 55-15 m.
- Net weight (2.2 lb = 1 kg)
- 22 kg / 48 lb 7.3 oz (48.458 lb)
- Author
- Model page created by Bernhard Nagel. See "Data change" for further contributors.
