• Country
• Belgium

• Manufacturer / Brand
• Magnétic, Société G.S.L.; Liège

• Year
• 1937 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 351446

• Number of Tubes
• 6

• Valves / Tubes
• 6D6 6A7 6B7 42 Neon_Indicator 42 80

• Main principle
• Superhet with RF-stage; ZF/IF 123 kHz; 2 AF stage(s); Reflex

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Details
• Visual Tuning Indicator pre Eye

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 140; 220; 240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 25 cm = 9.8 inch

• Material

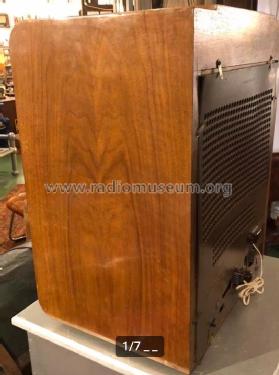

• Wooden case

• from Radiomuseum.org
• Model: Magnétic 6 - Magnétic, Société G.S.L.;

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 445 x 585 x 350 mm / 17.5 x 23 x 13.8 inch

• Notes

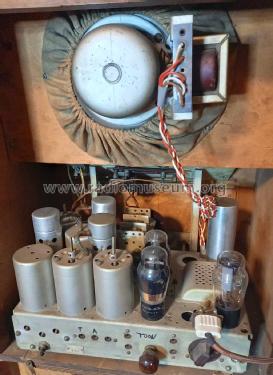

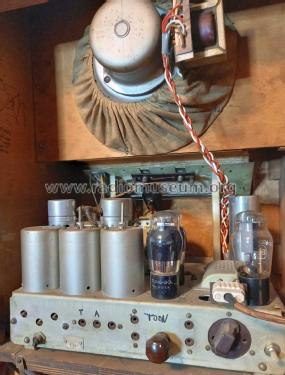

• This radio has a chassis from SBR, type 636A. See schematic there.

• Source of data
• -- Schematic

• Mentioned in
• -- Original prospect or advert

• Author
• Model page created by Herbert Weilinger. See "Data change" for further contributors.
