Amplificatore Lineare di Potenza M.E. 1000

Magnum Electronic; Forlì

Data
Forum
Pictures
Collections

  • Year
  • 1976 ?
  • Category
  • RF (Radio Frequency-) Amplifier
  • Radiomuseum.org ID
  • 336600

 Technical Specifications

  • Number of Tubes
  • 6
  • Valves / Tubes
  • Number of Transistors
  • 3
  • Semiconductors
  • Main principle
  • Radio Frequency Amplification only
  • Wave bands
  • Short Wave (SW only)
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Amplificatore Lineare di Potenza M.E. 1000 - Magnum Electronic; Forlì
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 400 x 160 x 320 mm / 15.7 x 6.3 x 12.6 inch
  • Notes

  • Frequenze di lavoro da 25 a 32 MHz in AM/SSB/CW/FM.
    Potenze di uscita: AM 200 Watt; SSB 500 Watt. Regolazione continua della potenza.
    Impedenza di ingresso 52 Ω; Impedenze di uscita da 40 a 80 Ω.
    Commutazione RX/TX elettronica.

    6 valvole, 3 transistor, 19 diodi 3 diodi Zener.

  • Net weight (2.2 lb = 1 kg)
  • 20.5 kg / 45 lb 2.5 oz (45.154 lb)
  • Price in first year of sale
  • 350,000.00 ITL
  • Mentioned in

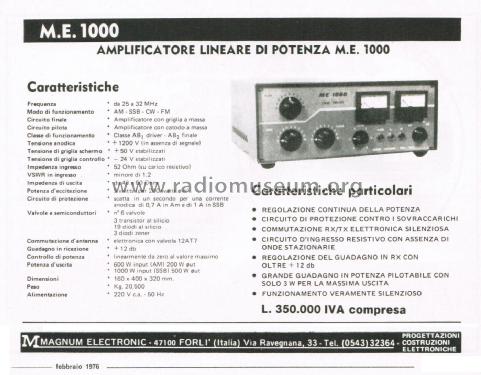

  • -- Original prospect or advert (Da: CQ Elettronica, CD edizioni, numero 2, febbraio 1976.)
  • Author
  • Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
