• Country
• United States of America (USA)

• Manufacturer / Brand
• Majestic Radio & Television Co.,(post 1932)

• Year
• 1947

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 46605

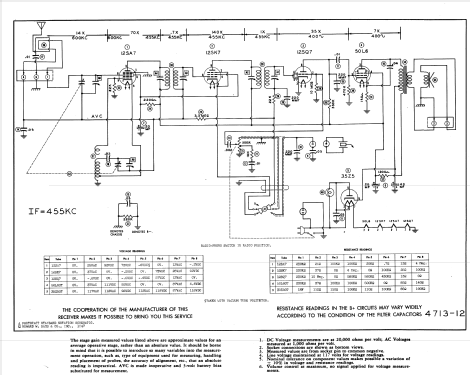

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12SA7GT 12SK7 12SQ7 50L6 35Z5

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Details
• Record Player (perh.Changer)

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4.5 inch = 11.4 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: 5A445R Ch= 4506 - Majestic Radio & Television Co

• Shape
• Tablemodel, with any shape - general.

• External source of data
• Ernst Erb

• Source of data
• Collector's Guide to Antique Radios 4. Edition

• Circuit diagram reference
• Rider's Perpetual, Volume 16 = ca. 1948 and before

• Mentioned in
• Beitman Radio Diagrams, Vol. 08, 1948

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 23, Folder 4713-12)

• Other Models

• Here you find 418 models, 174 with images and 358 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Majestic Radio & Television Co.,(post 1932)
