- Country
- United States of America (USA)
- Manufacturer / Brand
- Majestic Radio & Television Co.,(post 1932)
- Year
- 1939 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 171229
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- AC/DC-set / 105-125 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org

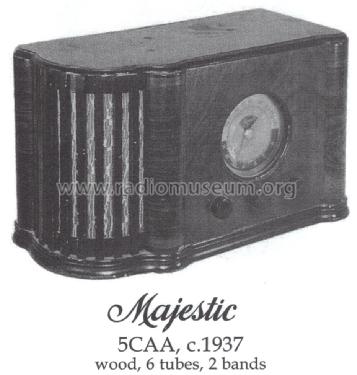

- Model: 5CAA - Majestic Radio & Television Co
- Shape
- Tablemodel, with any shape - general.
- Notes
-
By the tube lineup with the tK8GT this model can not be earlier than 1939.
- Circuit diagram reference
- Rider's Perpetual, Volume 12 = ca. 1941 and before
- Mentioned in
- Table Top Radios Vol. 1 Stein 98 (page 109.)
- Literature/Schematics (1)
- Riders 12-1
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
