• Country
• Spain

• Manufacturer / Brand
• Marahis, Manufactura Radio Hispania, Juan Soler Castell; Barcelona

• Year
• 1961 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 200749

• Number of Tubes
• 5

• Valves / Tubes
• UCH81 UF89 UBC41 UL84 UY85

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Short Wave(s) and Police.

• Power type and voltage
• AC/DC-set / 125-220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 4 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

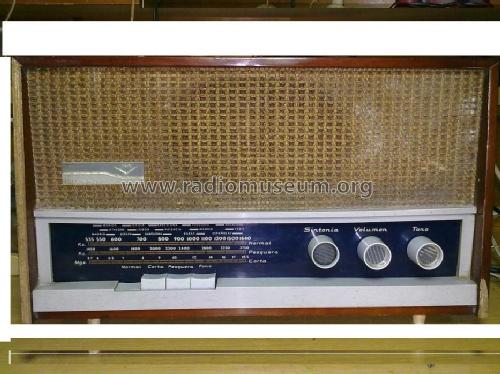

• Model: Q-181 - Marahis, Manufactura Radio

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 415 x 245 x 185 mm / 16.3 x 9.6 x 7.3 inch

• Notes

• Precio 2410 + 271,10 Impuesto Lujo = 2681,10 pts.

• Price in first year of sale
• 2,681.10 ESP

• Source of data
• - - Data from my own collection

• Author
• Model page created by Ignacio Rodriguez-Rodriguez. See "Data change" for further contributors.

• Other Models

• Here you find 35 models, 31 with images and 7 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Marahis, Manufactura Radio Hispania, Juan Soler Castell; Barcelona
