• Country
• Spain

• Manufacturer / Brand
• Marahis Manufactura Radio Hispania; Barcelona

• Year
• 1967 ??

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 291170

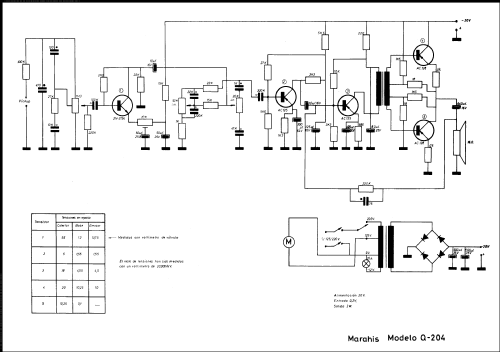

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 5

• Semiconductors
• 2N3794 AC125 AC125 AC128 AC128

• Main principle
• Audio-Amplification; 4 AF stage(s)

• Wave bands
• - without

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage
• Alternating Current supply (AC) / 125; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7.5 inch = 19.1 cm

• Power out
• 3 W (undistorted)

• from Radiomuseum.org
• Model: Q-204 - Marahis Manufactura Radio

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
