• Country
• United States of America (USA)

• Manufacturer / Brand
• Marantz (Sound United LLC); Vista, CA

• Year
• 1976/1977

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 150216

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

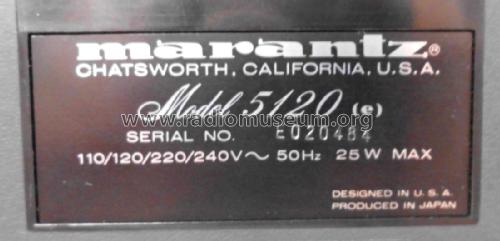

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Wooden case

• from Radiomuseum.org
• Model: Stereo Cassette Deck 5120 - Marantz Sound United LLC;

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 410 x 142 x 277 mm / 16.1 x 5.6 x 10.9 inch

• Notes

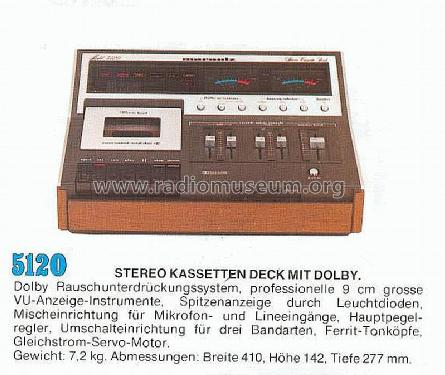

• Marantz 5120

  Hochwertiges Stereo Kassetten Deck mit Dolby-B-NR (NR für Noise Reduction). 90mm VU-Anzeigeinstrumente, Mikrofon/Line Mischeinrichtung. Hauptpegelregler, Umschalteinrichtung für 3 Bandarten, regelbare Ausgangsspannung.

  Gleichlaufschwankungen nach DIN: 0,09%

  Signal/Rauschverhältnis mit Dolby 58 dB, ohne Dolby 50 dB.

  Frequenzgang (jeweils ± 3 dB)

  • FeCr  Band  35 - 16.000 Hz
  • CrO₂  Band  35 - 14.000 Hz
  • Normal Bd.   45 - 13.000 Hz

• Net weight (2.2 lb = 1 kg)
• 7.2 kg / 15 lb 13.7 oz (15.859 lb)

• Source of data
• -- Original prospect or advert

• Mentioned in
• Marantz Katalog Stereo-Kassetten-Decks 1976/77 und 1977

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
