HD660 Late
Marantz (Sound United LLC); Vista, CA
- Country
- United States of America (USA)
- Manufacturer / Brand
- Marantz (Sound United LLC); Vista, CA
- Year
- 1981 ?
- Category
- Loudspeaker, headphone or earphone
- Radiomuseum.org ID
- 312435
- Wave bands
- - without
- Details
- Hi-Fi equipment
- Power type and voltage
- No Power needed
- Loudspeaker
- 3 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: HD660 [Late] - Marantz Sound United LLC;
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 350 x 650 x 270 mm / 13.8 x 25.6 x 10.6 inch
- Notes
-

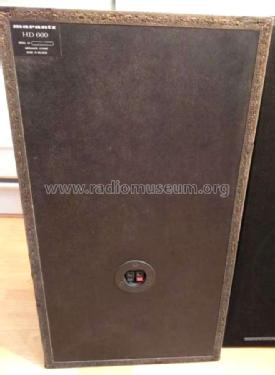

3 way hi-fi floor or stand mount loudspeakers in walnut vinyl finish wooden cabinets.
Specification
System: Bass Reflex
Impedance: 8 ohms
Power handling: 120 watts
Frequency Response: 40 - 20000Hz
Crossover Point: 3kHz / 7kHz
Driver diameters: 250mm Bass unit, 120mm Midrange unit, 50mm Tweeter.Made in Belgium
See also the earlier Marantz HD660 Loudspeaker model
- Literature/Schematics (1)
- - - Manufacturers Literature (Marantz HD160 HD260 HD360 HD460 HD660 Instruction Manual)
- Author
- Model page created by Howard Craven. See "Data change" for further contributors.
