LW/MW/FM Stereo Tuner ST450L

Marantz (Sound United LLC); Vista, CA

Datos
Foro
Imágenes
Colecciones

  • Año
  • 1981/1982
  • Categoría
  • Radio - o Sintonizador pasado WW2
  • Radiomuseum.org ID
  • 322488

 Especificaciones técnicas

  • Numero de transistores
  • Hay semiconductores.
  • Semiconductores
  • Principio principal
  • Superheterodino en general
  • Gama de ondas
  • OM, OL y FM
  • Especialidades
  • Hi-Fi equipment
  • Tensión de funcionamiento
  • Red: Corriente alterna (CA, Inglés = AC) / 110; 220; 240 Volt
  • Altavoz
  • - Este modelo usa amplificador externo de B.F.
  • Material
  • Metálico
  • de Radiomuseum.org
  • Modelo: LW/MW/FM Stereo Tuner ST450L - Marantz Sound United LLC;
  • Forma
  • Unidad para estanteria.
  • Ancho, altura, profundidad
  • 416 x 73 x 194 mm / 16.4 x 2.9 x 7.6 inch
  • Anotaciones

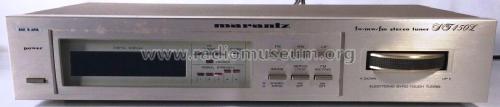

  • A 3 band hi-fi AM/FM stereo tuner with a digital display. With Electronic Gyro Touch Tuning, FM Tuning, Signal Strength and Stereo indicators, push button switches for FM, MW, LW, Mode (Stereo/Mono), Servo Lock (On/Off) and FM Muting. On the back, terminals for AM and FM antennae. an adjustable AM clip-on loop antenna, and a Line Output interconnect cable with phono plugs.

    Specification
    FM TUNER SECTION
    Frequency Range 87.5 - 108MHz
    Usable Sensitivity 40kHz Deviation, 98MHz
      Mono       S/N 26dB
      Stereo     S/N 46dB    		 0.9µV
    20µV
    Alternate Channel Selectivity, 98MHz 70dB
    Image Response Rejection, 98MHz 70dB
    IF Rejection, 98MHz  88dB
    Spurious Response Rejection, 98MHz 90dB
    AM Suppression, 98MHz 55dB
    Signal-to-Noise Ratio at 98MHz
      Un-weighted Mono 73dB
    Stereo 65dB
      Weighted Mono 76dB
    Stereo 70dB
    Pilot Signal & Subcarrier Rejection 19 kHz 65dB
    38 kHz 68dB
    Total Harmonic Distortion at 98MHz Mono   0.17%
    Stereo 0.2%
    Frequency Response 30Hz - 15kHz +0,-1dB
    Stereo Separation 45dB
    Channel Balance 0.2dB
    Output Voltage, 1kHz 700mV
    Output Impedance, 1kHz 1.8kΩ
    Acceptable Load Impedance, 1kHz 47kΩ
    Antenna Terminals Balanced   300Ω
    Unbalanced 75Ω
    MW TUNER SECTION
    Frequency Range 531 - 1602kHz
    Usable Sensitivity (20dB S/N 30% Mod., 1MHz) 10µV
    Selectivity 1MHz 35dB
    Image Rejection, 1MHz 45dB
    IF Rejection, 1MHz 45dB
    Signal-to-Noise Ratio, 1MHz 55dB
    Total Harmonic Distortion, 1MHz 0.3%
    LW TUNER SECTION
    Frequency Range 150 - 370kHz
    Usable Sensitivity (20dB S/N, 30% Mod., 250kHz) 90µV
    Image Rejection, 250kHz 36dB
    IF Rejection, 250kHz 65dB
    Signal-to-Noise Ratio, 250kHz 50dB

    Versions / Power requirements
    T /  220; 240V AC with voltage selector
    N / 220; 110V AC with voltage selector

    Power consumption: 14W

    Similar to the 2 band Marantz ST450 AM/FM Stereo Tuner which does not have LW.

  • Peso neto
  • 3.2 kg / 7 lb 0.8 oz (7.048 lb)
  • Mencionado en
  • -- Original prospect or advert (1981 Marantz Hi-Fi catalogue & two 1982 Marantz catalogues)
  • Documentación / Esquemas (1)
  • - - Manufacturers Literature (Service manual ST450)
  • Autor
  • Modelo creado por Howard Craven. Ver en "Modificar Ficha" los participantes posteriores.
