• Country
• United States of America (USA)

• Manufacturer / Brand
• Marantz (Sound United LLC); Vista, CA

• Year
• 1956 ?

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 132059

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 12AX7 6CG7 6CA7 6CA7 6AU4GTA 6AU4GTA

• Number of Transistors

• Semiconductors
• Selenium-Rectifier

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Hi-Fi equipment

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 40 W (undistorted)

• Material
• Metal case

• from Radiomuseum.org

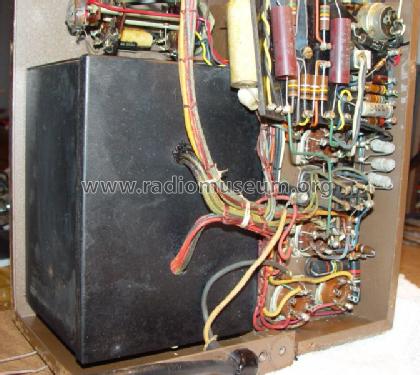

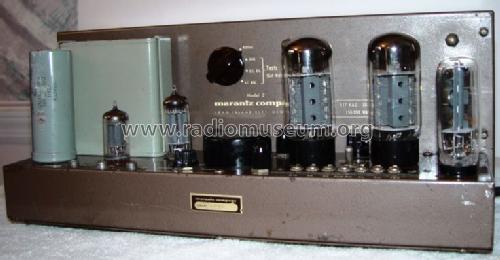

• Model: Model 2 - Marantz Sound United LLC;

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 15 x 6.5 x 9.5 inch / 381 x 165 x 241 mm

• Notes

• Power amplifier, mono, with Variable Damping; mode switchable between Ultralinear (40W) and Triode (20W); bias meter.

• Net weight (2.2 lb = 1 kg)
• 21.3 kg / 46 lb 14.7 oz (46.916 lb)

• Price in first year of sale
• 198.00 $

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
