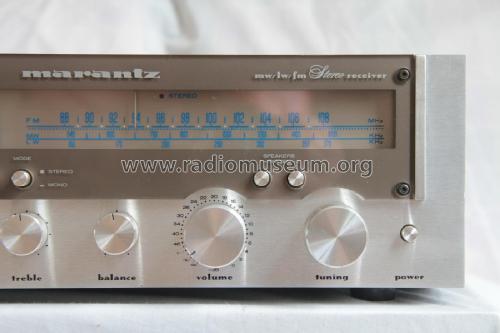

MW-AM-FM Stereo Receiver MR215L
Marantz (Sound United LLC); Vista, CA
- Country
- United States of America (USA)
- Manufacturer / Brand
- Marantz (Sound United LLC); Vista, CA
- Year
- 1980 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 271107
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110-240 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 50 W (undistorted)
- Material
- Wooden case
- from Radiomuseum.org
- Model: MW-AM-FM Stereo Receiver MR215L - Marantz Sound United LLC;
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 440 x 150 x 360 mm / 17.3 x 5.9 x 14.2 inch
- Notes
-
Tuning range: FM, MW, LWPower output: 25 watts per channel into 8 Ohms (stereo)Frequency response: 18Hz to 30kHzTotal harmonic distortion: 0.1%Damping factor: 42Input sensitivity: 2.8mV (MM), 180mV (line)Signal to noise ratio: 72dB (MM), 80dB (line)Output: 500mV (line)See also the Marantz AM-FM Stereophonic Receiver MR215 with MW and FM only.
- Net weight (2.2 lb = 1 kg)
- 7.1 kg / 15 lb 10.2 oz (15.639 lb)
- Author
- Model page created by Bartosz Szwed. See "Data change" for further contributors.
