Stereo Power Amplifier Sixteen 16 One Hundred RMS One Hundred

Marantz (Sound United LLC); Vista, CA

Data
Forum
Pictures
Collections

  • Year
  • 1969
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 279272

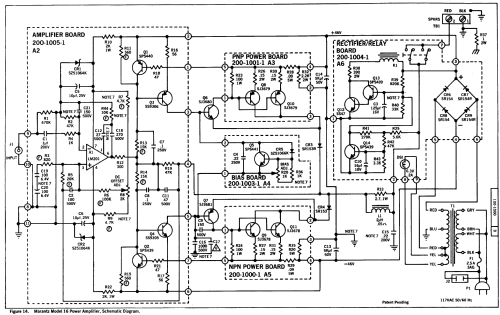

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 28
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC) / 117; 234 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 200 W (300 W max.)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Stereo Power Amplifier Sixteen 16 [One Hundred RMS One Hundred] - Marantz Sound United LLC;
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 390 x 146 x 204 mm / 15.4 x 5.7 x 8 inch
  • Notes

  • The Marantz Stereo Power Amplifier model 16 features two independent amplifier sections including of their power supply.

    The semiconductors are identical is each channel. They are listed only once.



    Units below number 16-1456 (excluded 16-1014, 16-1125, 16-1448, 16-1450): IC LH201 instead LM 201 (see Service Bulletin).

  • Net weight (2.2 lb = 1 kg)
  • 13.5 kg / 29 lb 11.8 oz (29.736 lb)
  • Price in first year of sale
  • 2,795.00 DM
  • Mentioned in
  • - - Manufacturers Literature (Service-Bulletin 31. August 1970)
  • Literature/Schematics (1)
  • -- Original prospect or advert (Paillard-Bolex Katalog Marantz Produkte Jan. 1971)
  • Literature/Schematics (2)
  • -- Original-techn. papers. (80 and 100 Watt versions)
  • Author
  • Model page created by a member from CH. See "Data change" for further contributors.
