• Country
• Argentina

• Manufacturer / Brand
• Maraton Radio; Buenos Aires

• Year
• 1965 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 252439

• Number of Transistors
• 6

• Semiconductors
• 2N412 2N410 2N410 2N406 2N408 2N408 OA79

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / D: 6 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm

• Material
• Wooden case

• from Radiomuseum.org

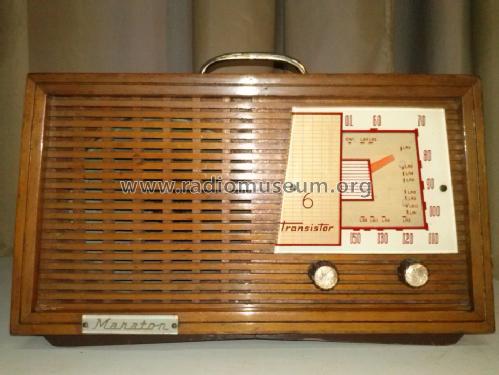

• Model: 6 Transistor M65 - Maraton Radio; Buenos Aires

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 310 x 175 x 155 mm / 12.2 x 6.9 x 6.1 inch

• Net weight (2.2 lb = 1 kg)
• 3.1 kg / 6 lb 13.3 oz (6.828 lb)

• Author
• Model page created by Jorge Juan Stark. See "Data change" for further contributors.

• Other Models

• Here you find 3 models, 3 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Maraton Radio; Buenos Aires
