• Country
• Italy

• Manufacturer / Brand
• La Voce del Padrone; Milano

• Year
• 1941/1942

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 98018

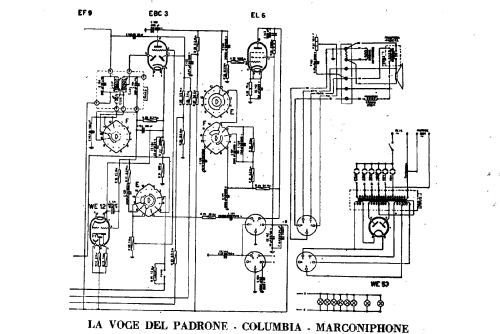

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• EF9 ECH4 EF9 EBC3 EM4 EL6 AZ1

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and more than two Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 110-275 Volt

• Loudspeaker
• -Loudspeaker incorporated, but system not known.

• Material
• Wooden case

• from Radiomuseum.org

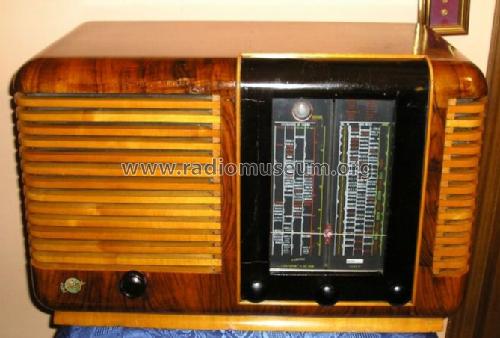

• Model: Marconi 1676 - La Voce del Padrone; Milano

• Shape
• Tablemodel, low profile (big size).

• Notes
• Gamme d'onda: OL OM OC OCS 4× OC expanse.

• Price in first year of sale
• 3,885.00 ITL

• Source of data
• Guida Pratica Antique Radio II (2000)

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
