• Country
• Great Britain (UK)

• Manufacturer / Brand
• Marconi Co. (Marconiphone, Marconi's Wireless Telegraph Co. Ltd.), GB (not tubes - see also HMV His Master's Voice)

• Year
• 1933/1934

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 17828

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• VDSB DH VDSB DSB DH DPT DPT

• Main principle
• Superheterodyne (common); ZF/IF 117 kHz

• Power type and voltage
• Direct Current supply (DC) / 200-250 Volt

• Material
• Wooden case

• from Radiomuseum.org

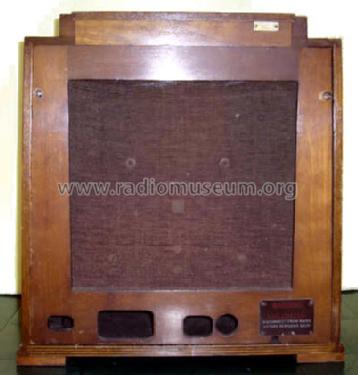

• Model: Marconiphone 276 DC - Marconi Co. Marconiphone,

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Notes

• The Marconi DC models 39, 239, 276, 290 and 291 share the same schematic. This according to the Thali collection (Switzerland).
