- Country
- Great Britain (UK)
- Manufacturer / Brand
- Marconi Co. (Marconiphone, Marconi's Wireless Telegraph Co. Ltd.), GB (not tubes - see also HMV His Master's Voice)
- Year
- 1936
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 105090
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 465 kHz
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- AC/DC-set / 200-250 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 382 - Marconi Co. Marconiphone,
- Shape
- Tablemodel, low profile (big size).
- Notes
- Same chassis is in the HMV 486 table radio. A similar chassis is fitted to the 392 radiogram and 395 auto-radiogram.
- Price in first year of sale
- 14.00 GBP
- Mentioned in
- -- Original-techn. papers.
- Literature/Schematics (1)
- Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (240)
- Literature/Schematics (2)

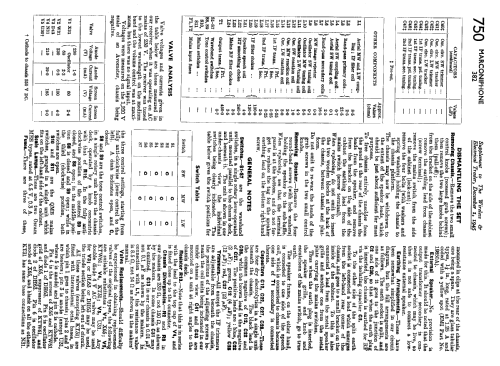

- Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (750)
- Author
- Model page created by Peter Hoddow. See "Data change" for further contributors.
