• Year
  • 1965 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 105150

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 7
  • Main principle
  • Superheterodyne (common); ZF/IF 475 kHz
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • Dry Batteries / 2 x 9 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
  • Power out
  • 0.6 W (unknown quality)
  • from Radiomuseum.org

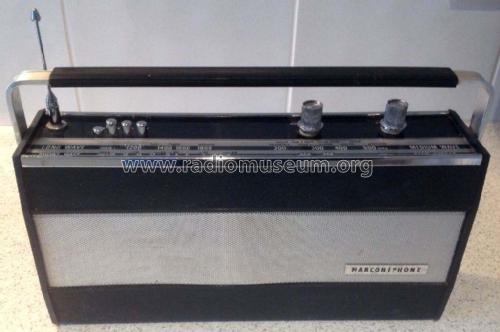

  • Model: 4140 - Marconi Co. Marconiphone,
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Notes
  • Ultra 6144 model is similar.
  • Mentioned in
  • -- Original-techn. papers.
  • Literature/Schematics (1)
  • Trader sheet 1843
  • Author
  • Model page created by Peter Hoddow. See "Data change" for further contributors.
