- Country
- Great Britain (UK)
- Manufacturer / Brand
- Marconi Co. (Marconiphone, Marconi's Wireless Telegraph Co. Ltd.), GB (not tubes - see also HMV His Master's Voice)
- Year
- 1968
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 226331
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 12
- Main principle
- Superheterodyne (common); ZF/IF 475/10700 kHz
- Wave bands
- Broadcast, Long Wave and FM or UHF.

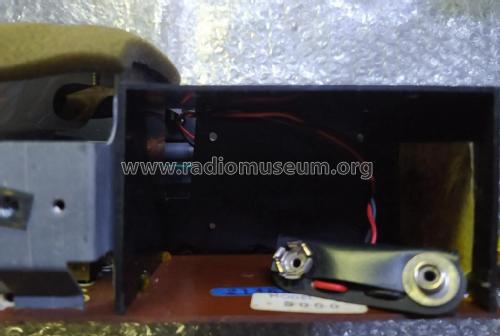

- Power type and voltage
- Dry Batteries / 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 0.8 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 4163 - Marconi Co. Marconiphone,
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 280 x 184 x 90 mm / 11 x 7.2 x 3.5 inch
- Notes
-
Sockets for earphone and tape recorder.
Elliptical loudspeaker 5 x 3 inch.
Similar to the HMV 2163 model.
- Net weight (2.2 lb = 1 kg)
- 1.9 kg / 4 lb 3 oz (4.185 lb)
- Literature/Schematics (1)
- ERT Service Chart 1693
- Author
- Model page created by Howard Craven. See "Data change" for further contributors.
