- Country
- Great Britain (UK)
- Manufacturer / Brand
- Marconi Co. (Marconiphone, Marconi's Wireless Telegraph Co. Ltd.), GB (not tubes - see also HMV His Master's Voice)
- Year
- 1973 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 331230
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 7
- Main principle
- Superheterodyne (common); ZF/IF 472/10700 kHz
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Power type and voltage
- Line / Batteries (any type) / 240 / D: 6 x 1.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 4182 - Marconi Co. Marconiphone,
- Shape
- Portable set > 8 inch (also usable without mains)
- Notes
-

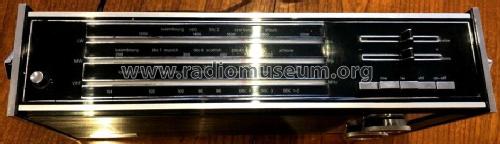

A mains/battery portable 3 band AM/FM radio housed in a plastic case. Long, medium and VHF/FM wavebands, switched AFC on VHF/FM, bass and treble controls, integrated circuit audio amplifier, elliptical loudspeaker 6 x 4 inch, sockets for tape, car aerial and earphone, telescopic antenna.
Same chassis as the HMV 2182 which has a slightly different case.
Dial lamp:12 V/ 0.1 A.
- Mentioned in
- Trader Service Sheet 3092/ 1973
- Literature/Schematics (1)
- - - Manufacturers Literature (Thorn Service Manual HMV 2182 Marconiphone 4182)
- Literature/Schematics (2)
- Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (3092 dated 17 Aug 1973)
- Author
- Model page created by Howard Craven. See "Data change" for further contributors.
