- Country
- Great Britain (UK)
- Manufacturer / Brand
- Marconi Co. (Marconiphone, Marconi's Wireless Telegraph Co. Ltd.), GB (not tubes - see also HMV His Master's Voice)
- Year
- 1967 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 180962
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 18
- Semiconductors
- SE1002 SE1002 AF116 AF115 AF116 AF116 U3540/1 AC156 3832/1 AC169 AC128 AC176 U3540/1 AC156 3832/1 AC169 AC176 AC128
- Main principle
- Superheterodyne (common); ZF/IF 475/10700 kHz; 4 AF stage(s)
- Tuned circuits
- 6 AM circuit(s) 7 FM circuit(s)
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 200-250 Volt
- Loudspeaker
- 2 Loudspeakers
- Power out
- 3 W (unknown quality)
- from Radiomuseum.org
- Model: 4318 - Marconi Co. Marconiphone,
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 43 x 23.75 x 16.5 inch / 1092 x 603 x 419 mm
- Notes
- Stereo radiogram (mono radio) fitted with a Balfour type "Princess" or BSR UA15 record changer unit. Similar to models Ferguson 3334 & HMV 2322.
- Source of data

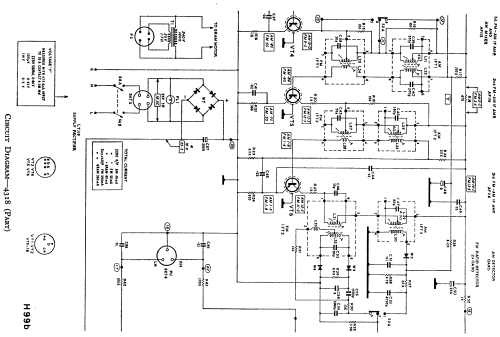

- -- Schematic
- Circuit diagram reference
- Radio and TV Servicing books (R&TVS) book
- Literature/Schematics (1)

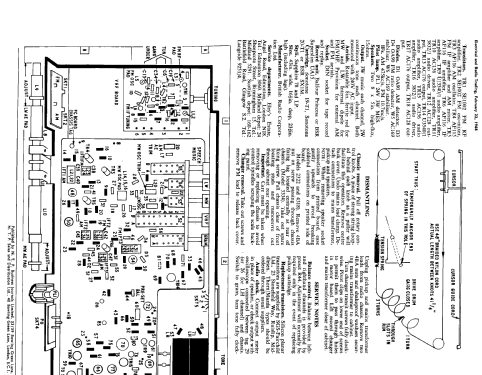

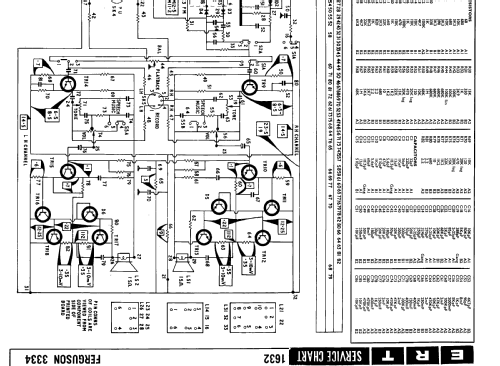

- ERT Chart 1632
- Author
- Model page created by Keith Staines. See "Data change" for further contributors.
