• Country
• Great Britain (UK)

• Manufacturer / Brand
• Marconi Co. (Marconiphone, Marconi's Wireless Telegraph Co. Ltd.), GB (not tubes - see also HMV His Master's Voice)

• Year
• 1938

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 83693

• Number of Tubes
• 7

• Valves / Tubes
• U12 X42 W42 W42 Y63 DH42 Pen4VA

• Main principle
• Superhet with RF-stage; ZF/IF 465 kHz

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 195-223; 224-245 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

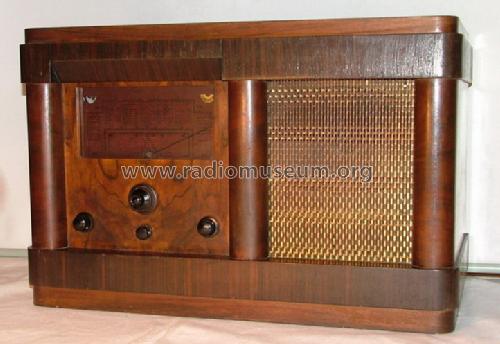

• Model: 499 - Marconi Co. Marconiphone,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 610 x 400 x 320 mm / 24 x 15.7 x 12.6 inch

• Notes
• Loudspeaker elliptical. Phono sockets.

• Net weight (2.2 lb = 1 kg)
• 19 kg / 41 lb 13.6 oz (41.85 lb)

• Price in first year of sale
• 15.00 GBP

• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by Zenonas Langaitis. See "Data change" for further contributors.
