- Country
- Great Britain (UK)
- Manufacturer / Brand
- Marconi Co. (Marconiphone, Marconi's Wireless Telegraph Co. Ltd.), GB (not tubes - see also HMV His Master's Voice)
- Year
- 1932
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 17856

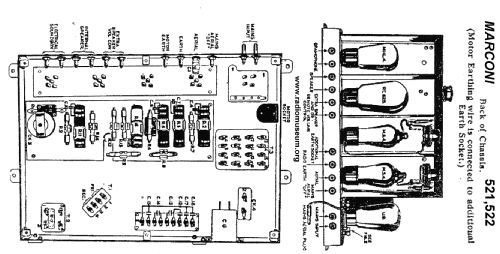

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- TRF without regeneration; 1 AF stage(s)
- Tuned circuits
- 3 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 100-250 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 inch = 25.4 cm
- Power out
- 3 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 522 - Marconi Co. Marconiphone,
- Shape
- Console, Lowboy (legs < 50 %).
- Dimensions (WHD)
- 25 x 38 x 18 inch / 635 x 965 x 457 mm
- Notes

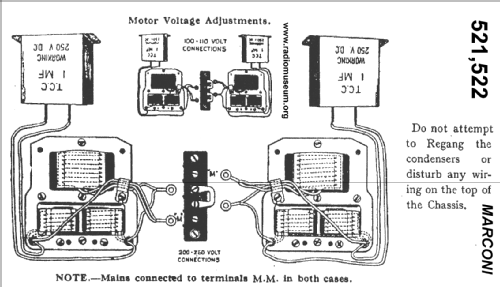

- Marconi player driven by direct drive hysteresis motor, dynamic loudspeaker type Marconi 1494A
- Net weight (2.2 lb = 1 kg)
- 45 kg / 99 lb 1.9 oz (99.119 lb)
- External source of data
- E. Erb 3-907007-36-0
- Circuit diagram reference
- Die «Thali Schemasammlung» führt das Modell.
