- Country
- Great Britain (UK)
- Manufacturer / Brand
- Marconi Co. (Marconiphone, Marconi's Wireless Telegraph Co. Ltd.), GB (not tubes - see also HMV His Master's Voice)
- Year
- 1928 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 248666
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- TRF with regeneration
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Storage and/or dry batteries
- Loudspeaker
- Magnetic loudspeaker (reed) generic.
- Material
- Wooden case
- from Radiomuseum.org

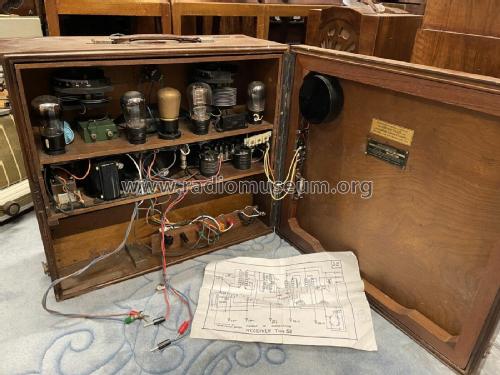

- Model: 53 - Marconi Co. Marconiphone,
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 457 x 419 x 203 mm / 18 x 16.5 x 8 inch
- Notes
-
Same as model 53A except the gramophone input is missing in model 53.
- Author
- Model page created by Rudie Dorrepaal. See "Data change" for further contributors.
