• Country
• Great Britain (UK)

• Manufacturer / Brand
• Marconi Co. (Marconiphone, Marconi's Wireless Telegraph Co. Ltd.), GB (not tubes - see also HMV His Master's Voice)

• Year
• 1937/1938

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 17778

• Picture
• Schematics

Previous Next

Previous Next

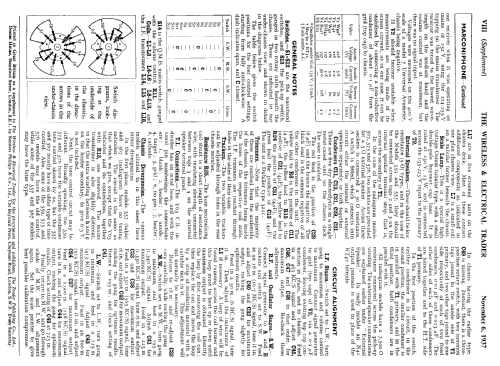

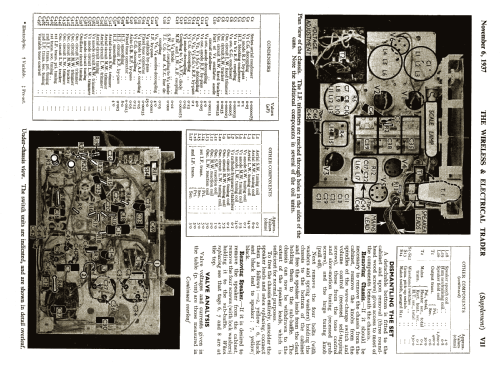

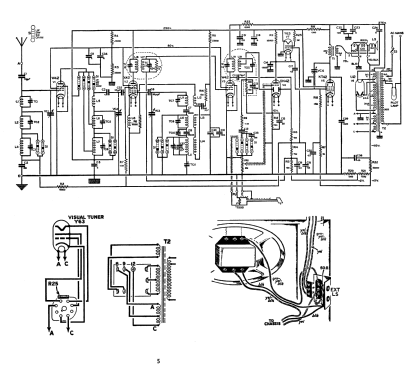

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• W42 X42 W42 DH42 N42 or KT42 U12 or U12/14

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 195-255 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

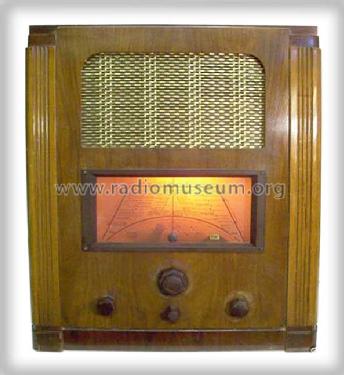

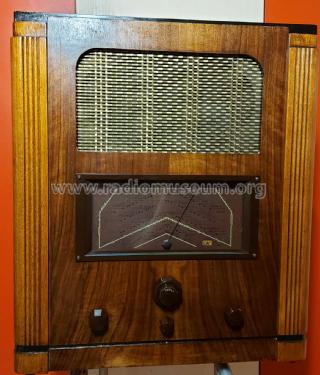

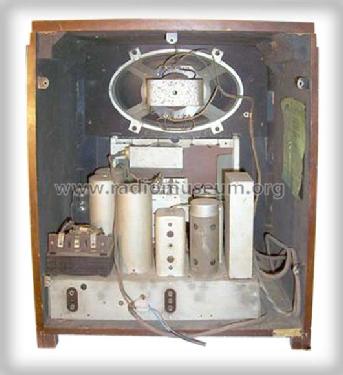

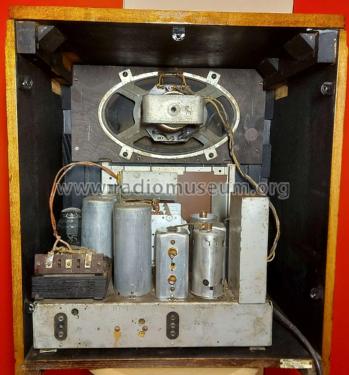

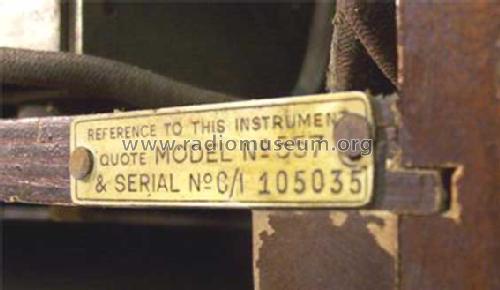

• Model: 557 - Marconi Co. Marconiphone,

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Notes
• A similar chassis is fitted to Marconiphone 559 table radio. Equivalent to the HMV 494 table radio.

• External source of data
• E. Erb 3-907007-36-0

• Circuit diagram reference
• Die «Thali Schemasammlung» führt das Modell.

• Literature/Schematics (1)

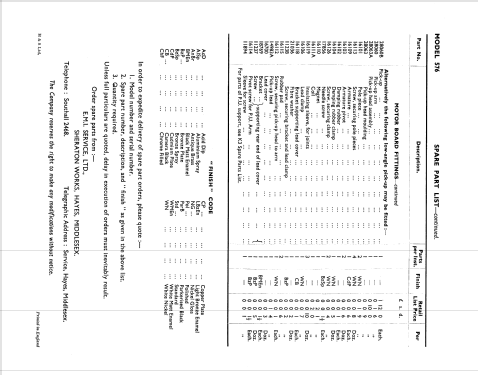

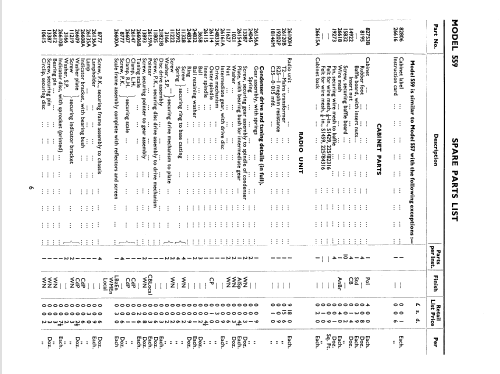

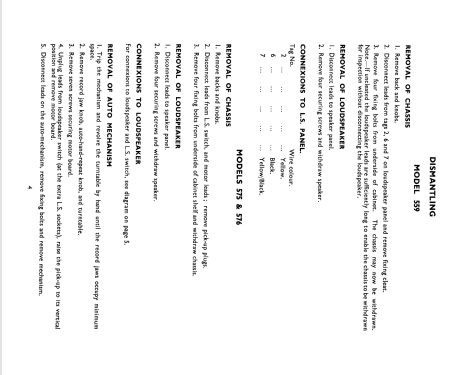

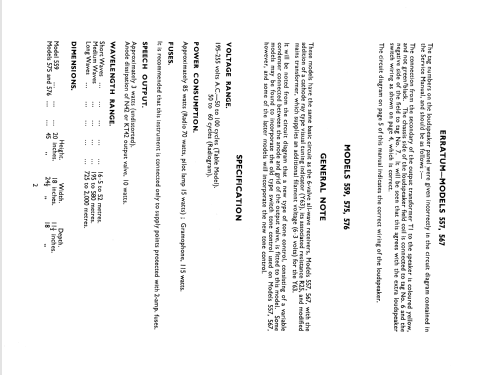

• Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (262)

• Literature/Schematics (2)
• Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (605)

• Other Models

• Here you find 501 models, 334 with images and 317 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Marconi Co. (Marconiphone, Marconi's Wireless Telegraph Co. Ltd.), GB (not tubes - see also HMV His Master's Voice)
