- Country
- Great Britain (UK)
- Manufacturer / Brand
- Marconi Co. (Marconiphone, Marconi's Wireless Telegraph Co. Ltd.), GB (not tubes - see also HMV His Master's Voice)
- Year
- 1937
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 17865

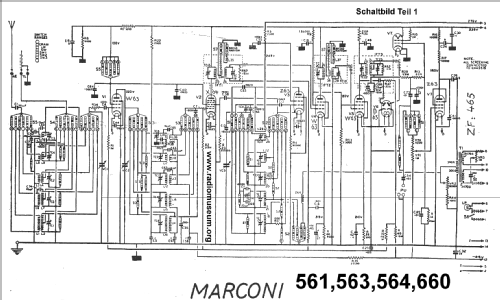

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 11
- Main principle
- Superhet with RF-stage; ZF/IF 465 kHz
- Wave bands
- Broadcast, Long Wave and more than two Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 195-255 Volt
- Loudspeaker
- 2 Loudspeakers
- Power out
- 8 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org

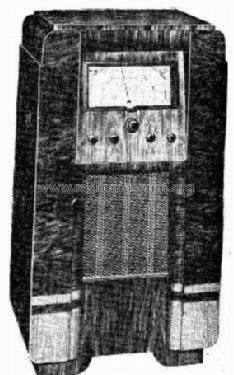

- Model: 564 - Marconi Co. Marconiphone,
- Shape
- Console with any shape - in general
- Notes
- SW1: 5-12 m, SW2: 11-34 m, SW3: 34-107 m. Planetary drive. Two IF-stages with variable bandwidth.
This model has the same basic chassis as models 561 and 563.
- Price in first year of sale
- 35.00 GBP
- External source of data
- E. Erb 3-907007-36-0
- Circuit diagram reference
- Die «Thali Schemasammlung» führt das Modell.
- Mentioned in
- Wireless World (The), London (WW, 79) (Show review August 1937)
- Literature/Schematics (1)
- Broadcaster, Service Man's Manual (Jan. 1938)
- Other Models
-
Here you find 501 models, 334 with images and 317 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Marconi Co. (Marconiphone, Marconi's Wireless Telegraph Co. Ltd.), GB (not tubes - see also HMV His Master's Voice)
