• Country
• Great Britain (UK)

• Manufacturer / Brand
• Marconi Co. (Marconiphone, Marconi's Wireless Telegraph Co. Ltd.), GB (not tubes - see also HMV His Master's Voice)

• Year
• 1937

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 191946

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• KTW63 or W63 X63 KTW63 or W63 DH63 TI64 or Y63 KT32 U31

• Main principle
• Superhet with RF-stage; ZF/IF 465 kHz

• Wave bands
• Broadcast, Long Wave and Short Wave.

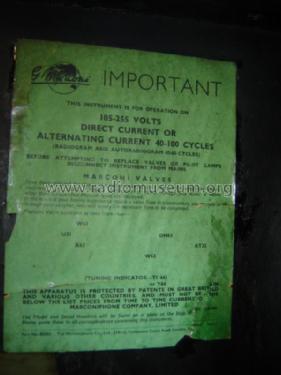

• Power type and voltage
• AC/DC-set / 105-255 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 25 cm = 9.8 inch

• Material
• Wooden case

• from Radiomuseum.org
• Model: 571 - Marconi Co. Marconiphone,

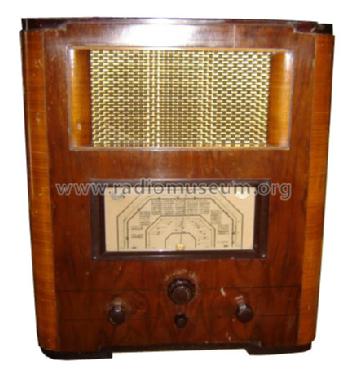

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 450 x 510 x 275 mm / 17.7 x 20.1 x 10.8 inch

• Notes
• The Marconi 572 and 573 radiograms have a similar chassis.

• Literature/Schematics (1)
• Trader sheet 356

• Author
• Model page created by Radiomuseum Olen Museum. See "Data change" for further contributors.
