- Country
- Great Britain (UK)
- Manufacturer / Brand
- Marconi Co. (Marconiphone, Marconi's Wireless Telegraph Co. Ltd.), GB (not tubes - see also HMV His Master's Voice)
- Year
- 1937 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 198448
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 465 kHz
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 195-255 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Wooden case
- from Radiomuseum.org

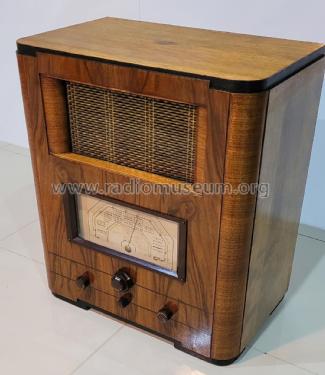

- Model: 851 - Marconi Co. Marconiphone,
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Dimensions (WHD)
- 430 x 510 x 280 mm / 16.9 x 20.1 x 11 inch
- Notes
-
See tube lineup for the first possible date.
- Net weight (2.2 lb = 1 kg)
- 9.2 kg / 20 lb 4.2 oz (20.264 lb)
- Author
- Model page created by Guglielmo Rebuffo. See "Data change" for further contributors.
