• Country
• Spain

• Manufacturer / Brand
• Marconi Española S.A. (Telmar); Villaverde

• Year
• 1965–1970 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 142010

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6BQ7 HCH81 12BA6 19T8 EL84 35W4

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, 2 Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 125; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org

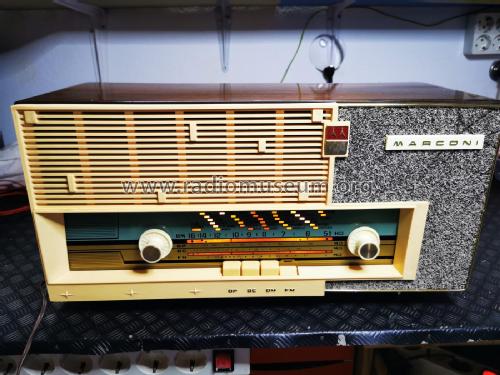

• Model: AM3301 - Marconi Española S.A. Telmar;

• Shape
• Tablemodel with Push Buttons.

• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by a member from E. See "Data change" for further contributors.

• Other Models

• Here you find 192 models, 149 with images and 95 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Marconi Española S.A. (Telmar); Villaverde
