• Country
• Spain

• Manufacturer / Brand
• Marconi Española S.A. (Telmar); Villaverde

• Year
• 1963 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 107046

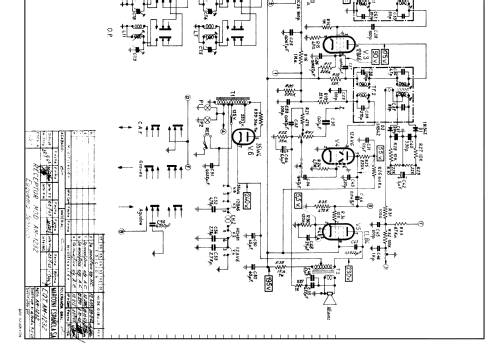

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECC85 HCH81 12BA6 12AV6 EL84 35W4

• Number of Transistors

• Semiconductors
• 1N542

• Main principle
• Superheterodyne (common); 2 AF stage(s)

• Wave bands
• Broadcast, 2 Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 125-220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: AM-1232 - Marconi Española S.A. Telmar;

• Shape
• Tablemodel with Push Buttons.

• Notes

• Marconi Española, S.A. (Telmar), modelo AM-1232

  PELIGRO: Alimentación por autotransformador. Chasis unido a la red eléctrica.
  No todos los casos llevan esta nota ya que a menudo quienes proponen el modelo lo desconocen.

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by a member from E. See "Data change" for further contributors.

• Other Models

• Here you find 192 models, 149 with images and 95 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Marconi Española S.A. (Telmar); Villaverde
