- Country
- Spain
- Manufacturer / Brand
- Marconi Española S.A. (Telmar); Villaverde
- Year
- 1960/1961
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 106419
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 6 AM circuit(s) 9 FM circuit(s)
- Wave bands
- Broadcast, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 125 Volt
- Loudspeaker
- Permanent or electro-dynamic (moving coil), system not known yet. / Ø 5 inch = 12.7 cm
- Material
- Bakelite case
- from Radiomuseum.org

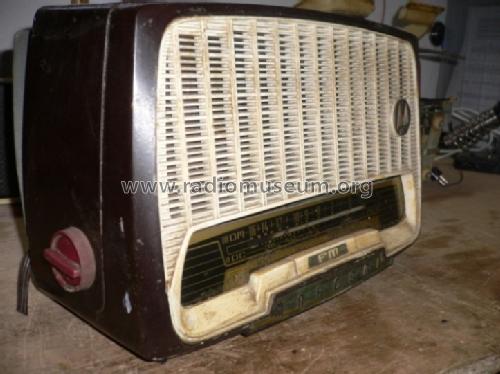

- Model: AM-249-FM - Marconi Española S.A. Telmar;
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 310 x 205 x 138 mm / 12.2 x 8.1 x 5.4 inch
- Price in first year of sale
- 2,625.00 ESP
- Source of data
- -- Collector info (Sammler)
- Author
- Model page created by Getulio Jimenez-Gomez. See "Data change" for further contributors.
