• Year
  • 1955 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 145510

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 470/10700 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)     8 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and FM or UHF.
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 195-255 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: ARG45A - Marconi Co. Marconiphone,
  • Shape
  • Console with any shape - in general
  • Notes

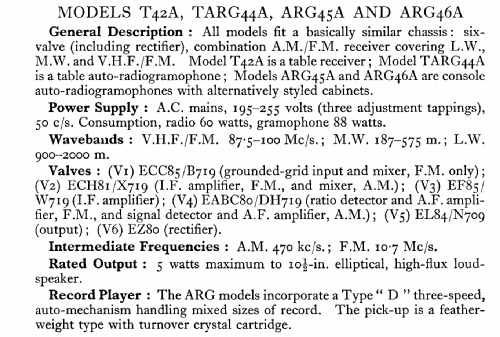

  • Radiogram with type "D" 3 speed record changer, crystal pick-up.
  • Source of data
  • -- Schematic
  • Circuit diagram reference
  • Radio and TV Servicing books (R&TVS) book
  • Author
  • Model page created by Keith Staines. See "Data change" for further contributors.
