- Country
- Spain
- Manufacturer / Brand
- Marconi Española S.A. (Telmar); Villaverde
- Year
- 1953
- Category
- Military Transceiver (TRX)
- Radiomuseum.org ID
- 289193
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 14
- Main principle
- Transceiver; ZF/IF 4,3 kHz; 1 AF stage(s)
- Tuned circuits
- 1 FM circuit(s)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Dry Batteries / +135 & +67,5 & -6 & +1,5 Volt
- Loudspeaker
- - For headphones or amp.
- Power out
- 1 W (1 W max.)
- Material
- Metal case
- from Radiomuseum.org
- Model: AN/PRC-9A - Marconi Española S.A. Telmar;
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 267 x 241 x 76 mm / 10.5 x 9.5 x 3 inch
- Notes
-
Frequency Range is 27,0 to 38,9MHz.

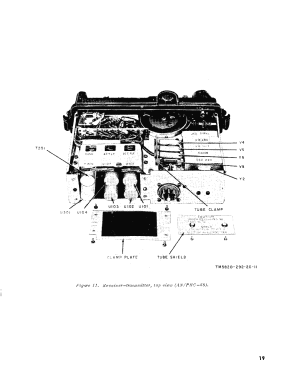

1AD4 (1 unit), 1st. RF Ampl.
5672 (1 unit), Audio
5678 (8 units), 2nd. RF Ampl., IF ampls.
6286 (3 units), Rx osc., Calibration osc., Modulator.
5A6 (1 unit) Tx Osc.
- Net weight (2.2 lb = 1 kg)
- 11.790 kg / 25 lb 15.5 oz (25.969 lb)
- Author
- Model page created by Miguel Romera Gómez. See "Data change" for further contributors.
