Autovox MA-755-A

Marconi Española S.A. (Telmar); Villaverde

Data
Forum
Pictures
Collections

  • Year
  • 1980 ??
  • Category
  • Car Radio, perhaps also + sound player/recorder
  • Radiomuseum.org ID
  • 204832

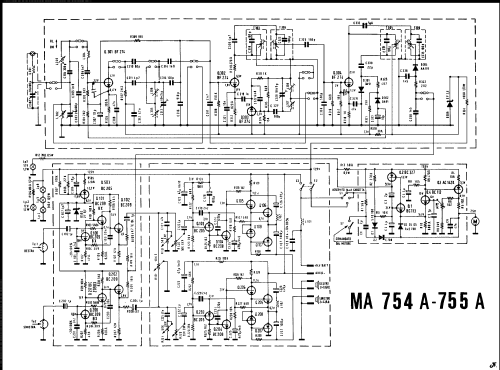

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 27
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 14 W (unknown quality)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Autovox MA-755-A - Marconi Española S.A. Telmar;
  • Shape
  • Chassis only or for «building in»
  • Dimensions (WHD)
  • 180 x 52 x 167 mm / 7.1 x 2 x 6.6 inch
  • Notes
  • Estereo, salida 2 x 7W.
    Listado un semiconductor por tipo.
    Fabricado con licencia Autovox S.p.A. Roma.
  • Net weight (2.2 lb = 1 kg)
  • 2 kg / 4 lb 6.5 oz (4.405 lb)
  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
