New York TM-632-B
Marconi Española S.A. (Telmar); Villaverde
- Country
- Spain
- Manufacturer / Brand
- Marconi Española S.A. (Telmar); Villaverde
- Year
- 1967 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 340792

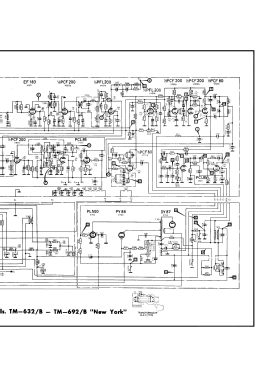

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 13
- Number of Transistors
- 2
- Main principle
- Superhet with RF-stage; 2 AF stage(s)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 125; 220 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: New York TM-632-B - Marconi Española S.A. Telmar;
- Shape
- Tablemodel, low profile (big size).
- Notes
-
Marconi Española, S.A. (Telmar), New York TM-632-B
TV B/N con TRC de 59 cm (23").
Selector rotativo de VHF tipo RD.95.063
Sintonizador de UHF tipo RD.95.060
- Literature/Schematics (1)
- -- Schematic (Esquemario TV REDE, Tomo VI, 1970)
- Author
- Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
