• Country
• Spain

• Manufacturer / Brand
• Marconi Española S.A. (Telmar); Villaverde

• Year
• 1967 ??

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 194196

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 8

• Semiconductors
• AF127 AF127 AF127 BC109 or. BC108 AC128 AC128 AC181 or. AC187 AC180 or. AC188 SFD112

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org

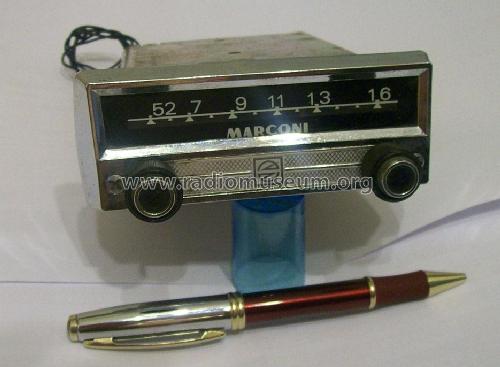

• Model: RA-314 - Marconi Española S.A. Telmar;

• Shape

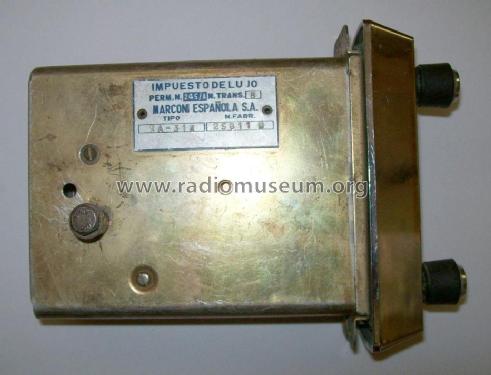

• Chassis only or for «building in»

• Notes
• Fabricado con licencia Radiovox.

• Source of data
• -- Schematic

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
