• Country
• Spain

• Manufacturer / Brand
• Marconi Española S.A. (Telmar); Villaverde

• Year
• 1961

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 155167

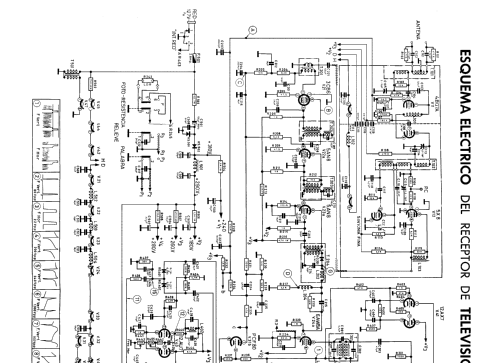

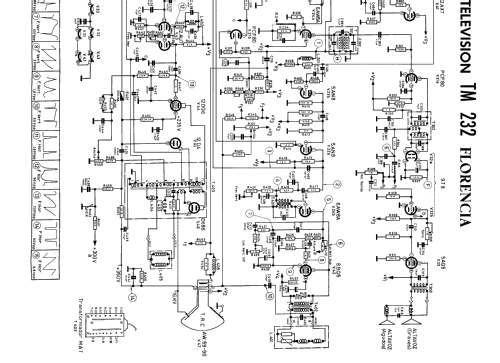

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 16

• Valves / Tubes
• 4BQ7A 5X8 3CB6 5AN8 5AN8 6AW8A PCF80 9T8 5AQ5 12AX7 8BQ5 12AU7 12DQ6 12D4 DY86 AW59-90

• Main principle
• Superhet, double/triple conversion; ZF/IF 37750 kHz; 2 AF stage(s)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 125 Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 2 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Florencia TM-232 - Marconi Española S.A. Telmar;

• Shape
• Tablemodel, low profile (big size).

• Notes

• Sintonizador rotativo VHF canales 2 - 11. TRC: 23".

• Price in first year of sale
• 22,850.00 ESP

• Literature/Schematics (1)
• -- Original-techn. papers. (Anuncio La Vanguardia 27 Octubre 1961)

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
